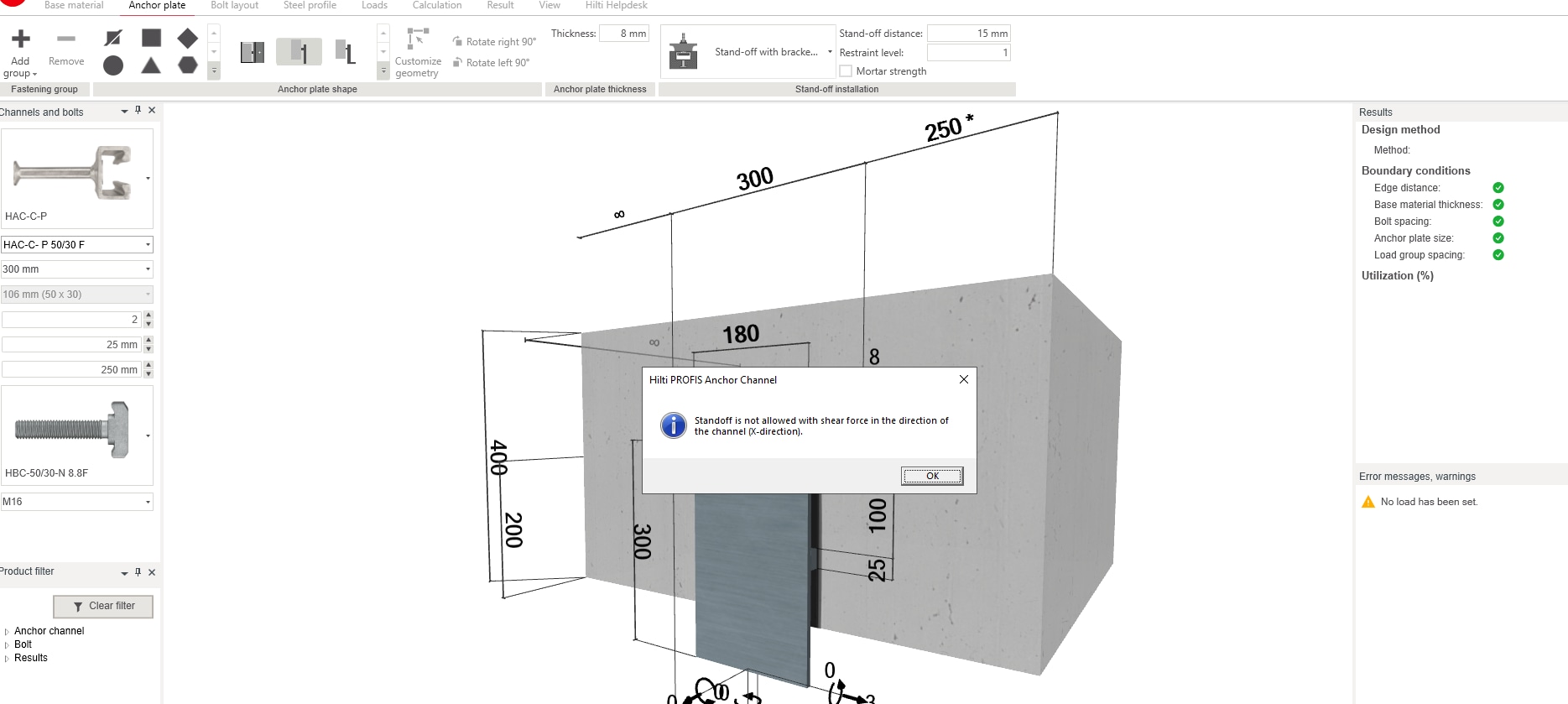

Hi. I have encountered a situation where the anchor plate is in front of the concrete and it has to take a shear load parallel to the anchor channel. Due to concrete tolerance, the stand-off can be up to 50mm. But when I put a stand-off in the software (PROFIS), it doesn't allow this and doesn't calculate.
How to solve this problem in software? What material can I use as a stand-off/levelling layer?
Dear Jiahui,
Thank you for reporting your problem. We indeed have an ETA on serrated channels, to take a shear load parallel to the anchor channel.
The situation described needs a project specific advice. In order to provide you with expert advice and resolve your challenge, we would like to put you in touch with one of our anchor channel specialists. You will receive a callback from our engineering department. For more technical guidelines consult our Technical guideline for anchor channels:
https://www.hilti.nl/medias/sys_master/documents/he8/h8a/9723761000478/Anchor-Channel-Design-Guide-Technical-information-ASSET-DOC-16716677.pdf
Regards,
Team ASK Hilti
